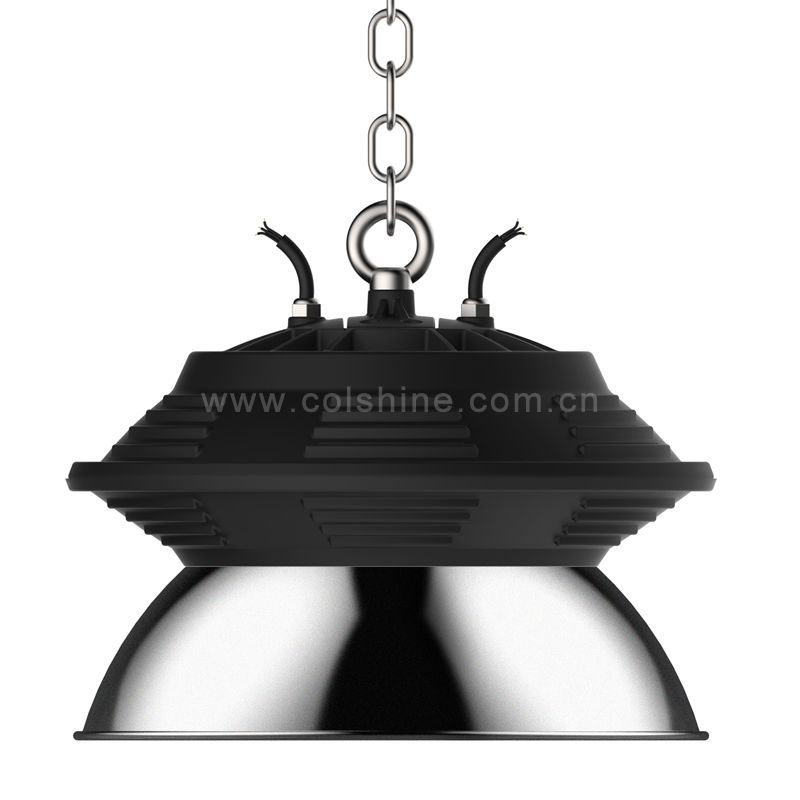

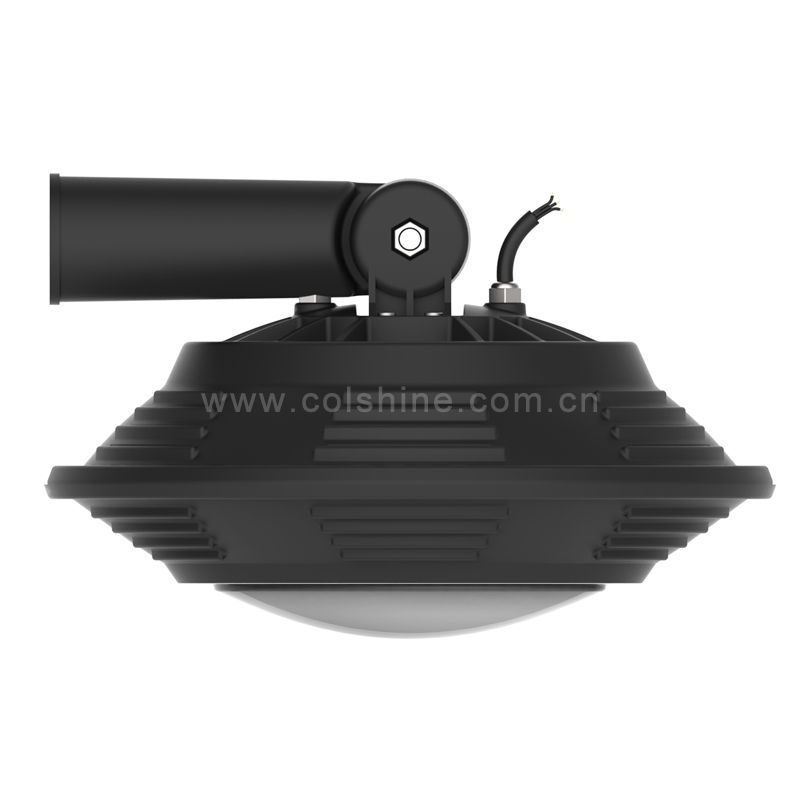

Colshine led warehouse high bay light 150W-480W with ETL certificate

Item No.:
CS-HB
Specifications:
This series has an IP 65 rating and is dimmable. It can be installed indoor as Highbays, or outdoor as Flood Lights and Area Lights. Whatever the application is, this LED fixture also offers Lighting controls and multiple mounting options to accommodate your needs.

– Limited Warranty: 5 years
– Efficacy: up to 140 LPW
– Lumen Output: 43,000 – 69,000 L
– Wattage: 150W – 480W
with ETL & CETL certificates.
Our products comply with the requirements of the Standard : UL-1598 and CAN/CSA-C22.2 No. 250.0



400w high bay led replacement, 150w led high bay light,200w led high bay light,300w led high bay light,240w led high bay light,480w led high bay light

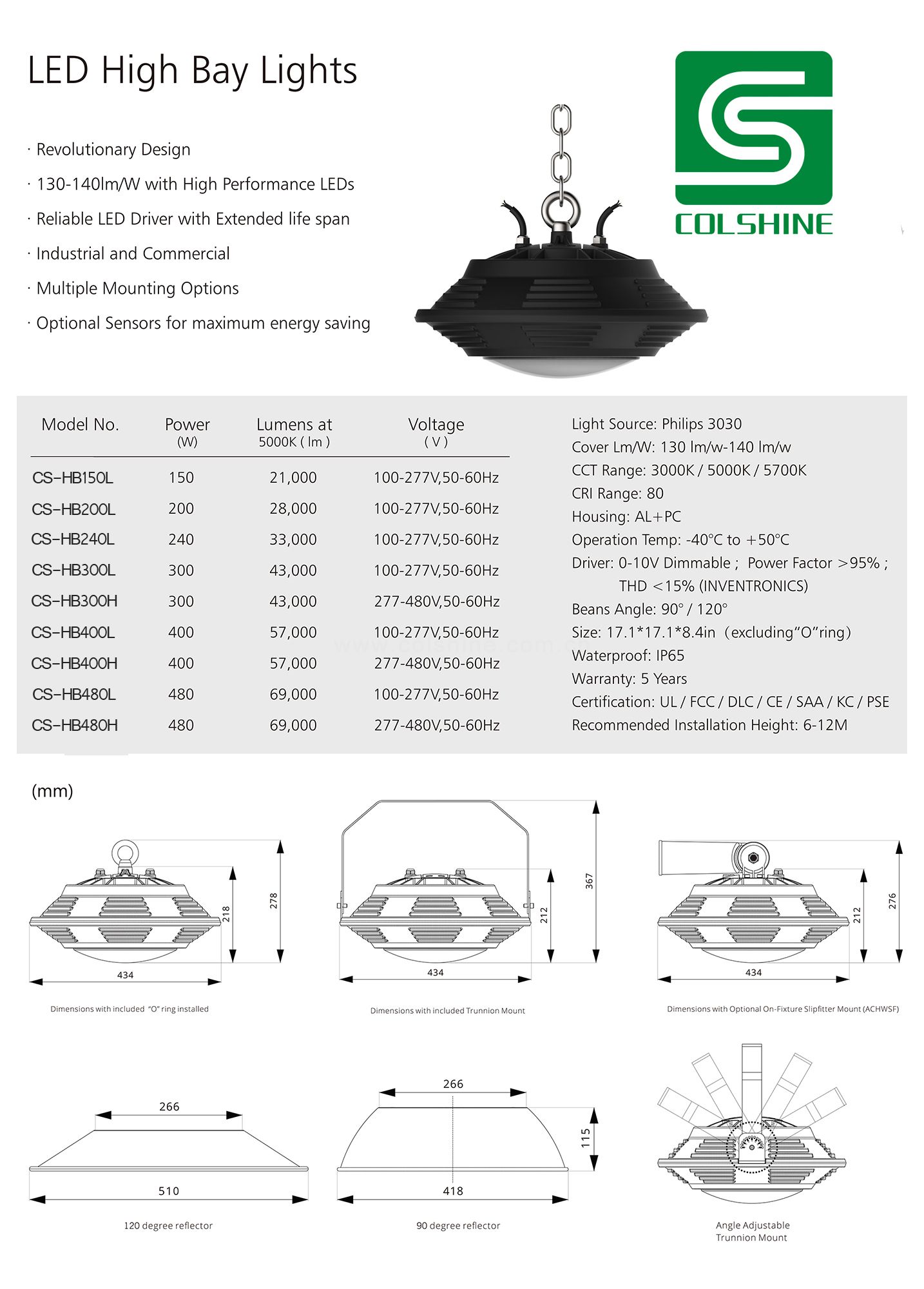

Details

Model

CS-HB150L

CS-HB200L

CS-HB240L

CS-HB300L

CS-HB400L

CS-HB480L

CS-HB300H

CS-HB400H

CS-HB480H

Power

150W

200W

240W

300W

400W

480W

Lumens

130lm/w — 140lm/w

CCT

3000K / 4000K / 5000K / 5700K

Housing

AL + PC

Operation Temp

-40 — +50

Life Span

50,000 hours

LED

Philips 3030

Driver

Dimmable LED Drive

Voltage range

90-305V/AC (50/60Hz)

( CS-HB150L / CS-HB200L / CS-HB240L / CSHB300L / CS-HB400L / CS-HB480L)

277-480V/AC (50/60Hz)

( CS-HB300H / CS-HB400H / CS-HB480H )

Beam Angle

90°/ 120°

CRI

80

PF

≥0.95

Certification

ETL/ DLC / CE / FCC / SAA / KC / PSE / RoSH

Power efficiency

≥90

Warranty

5 years

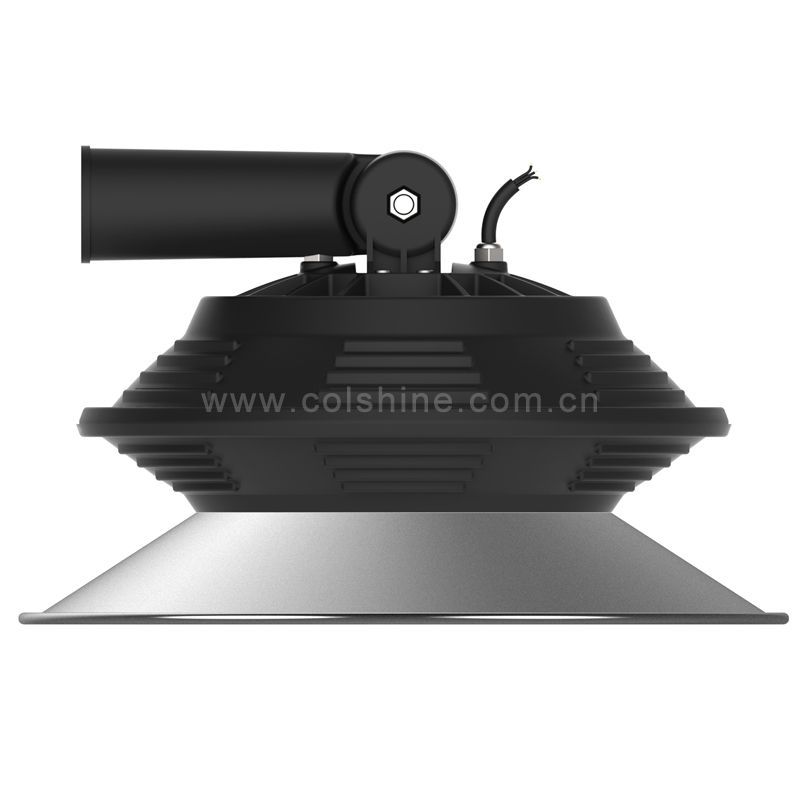

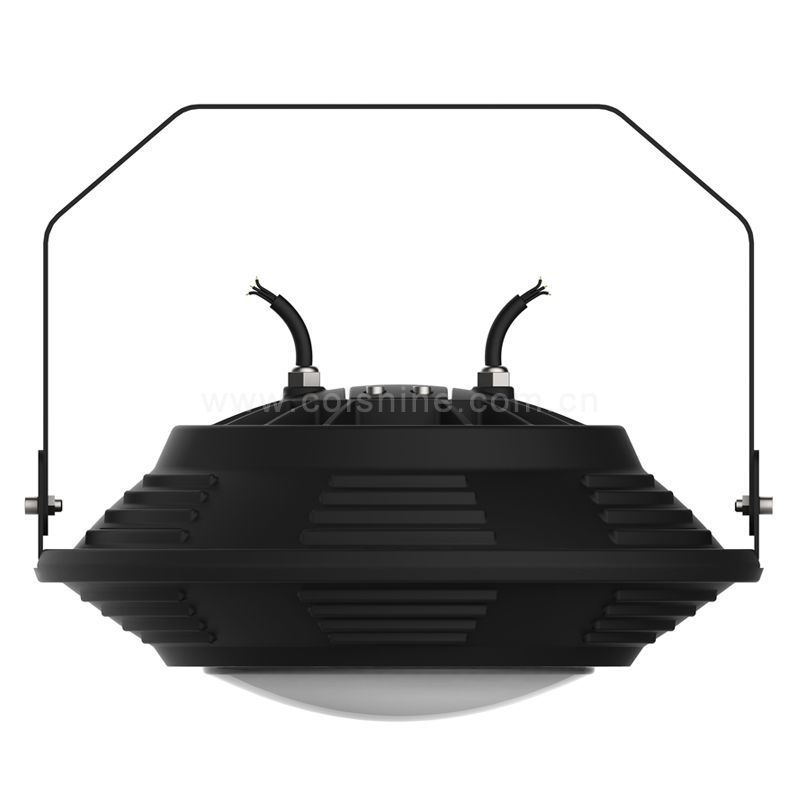

Installation

Type A  /  Type B  /  Type C

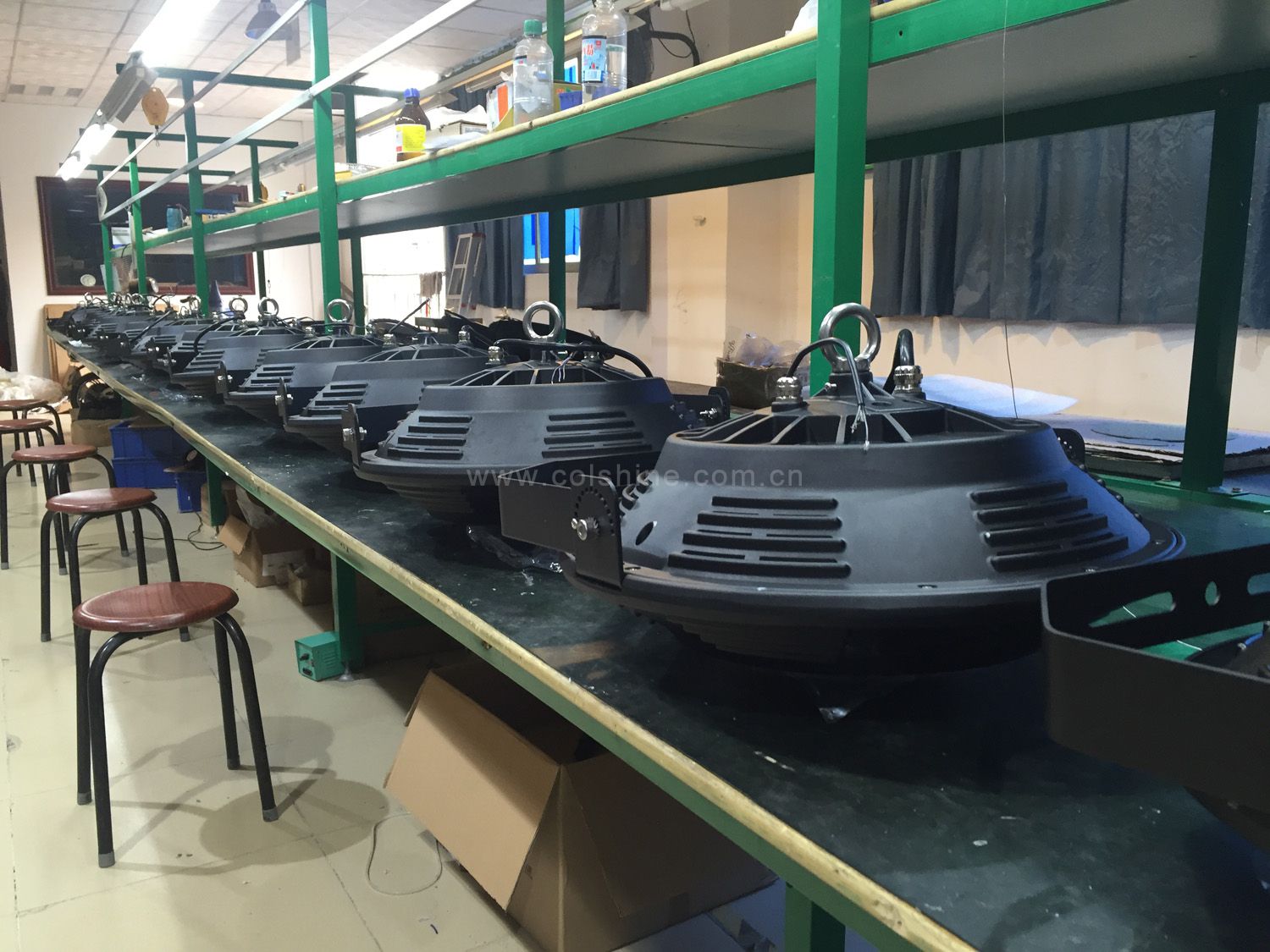

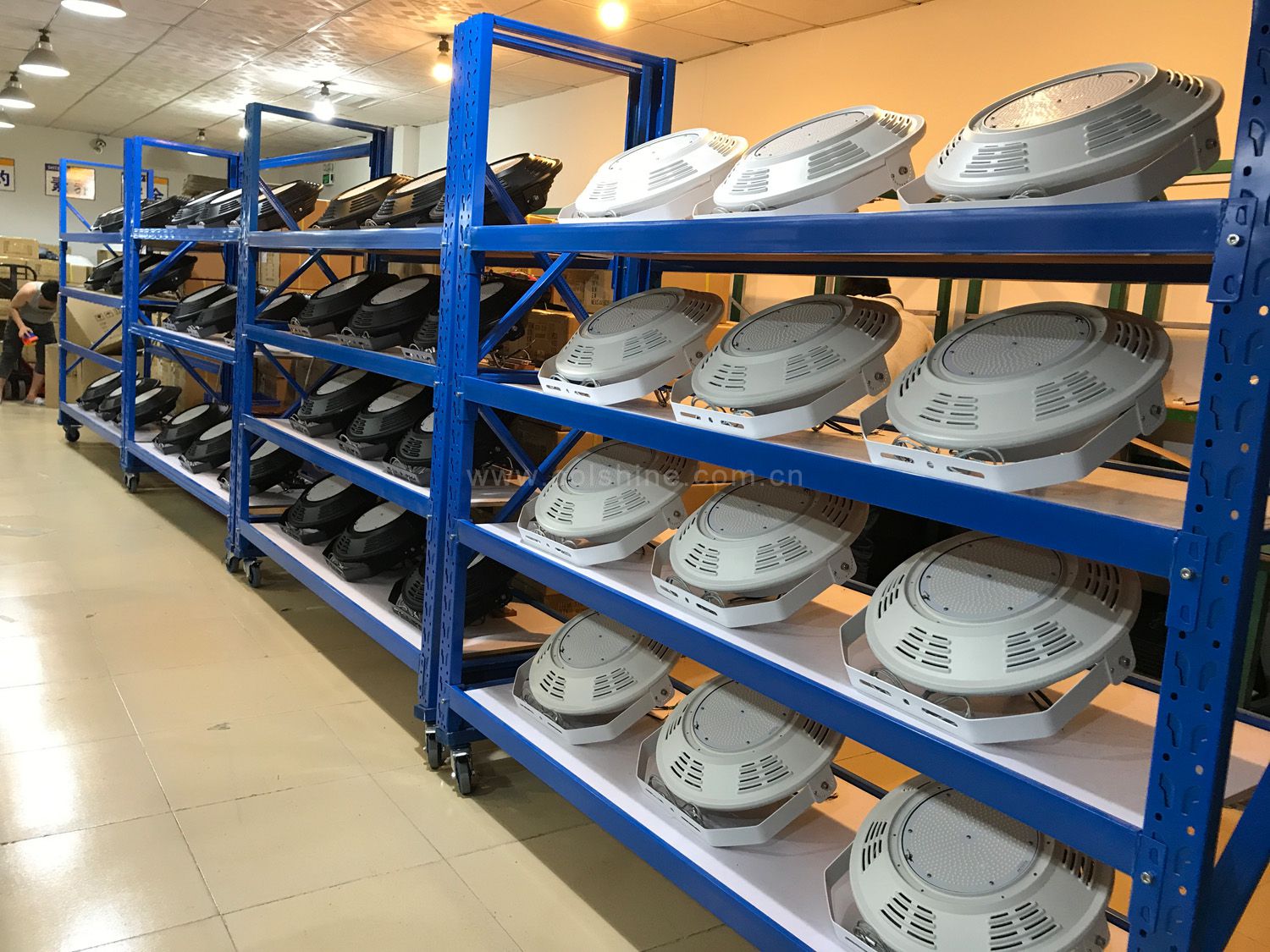

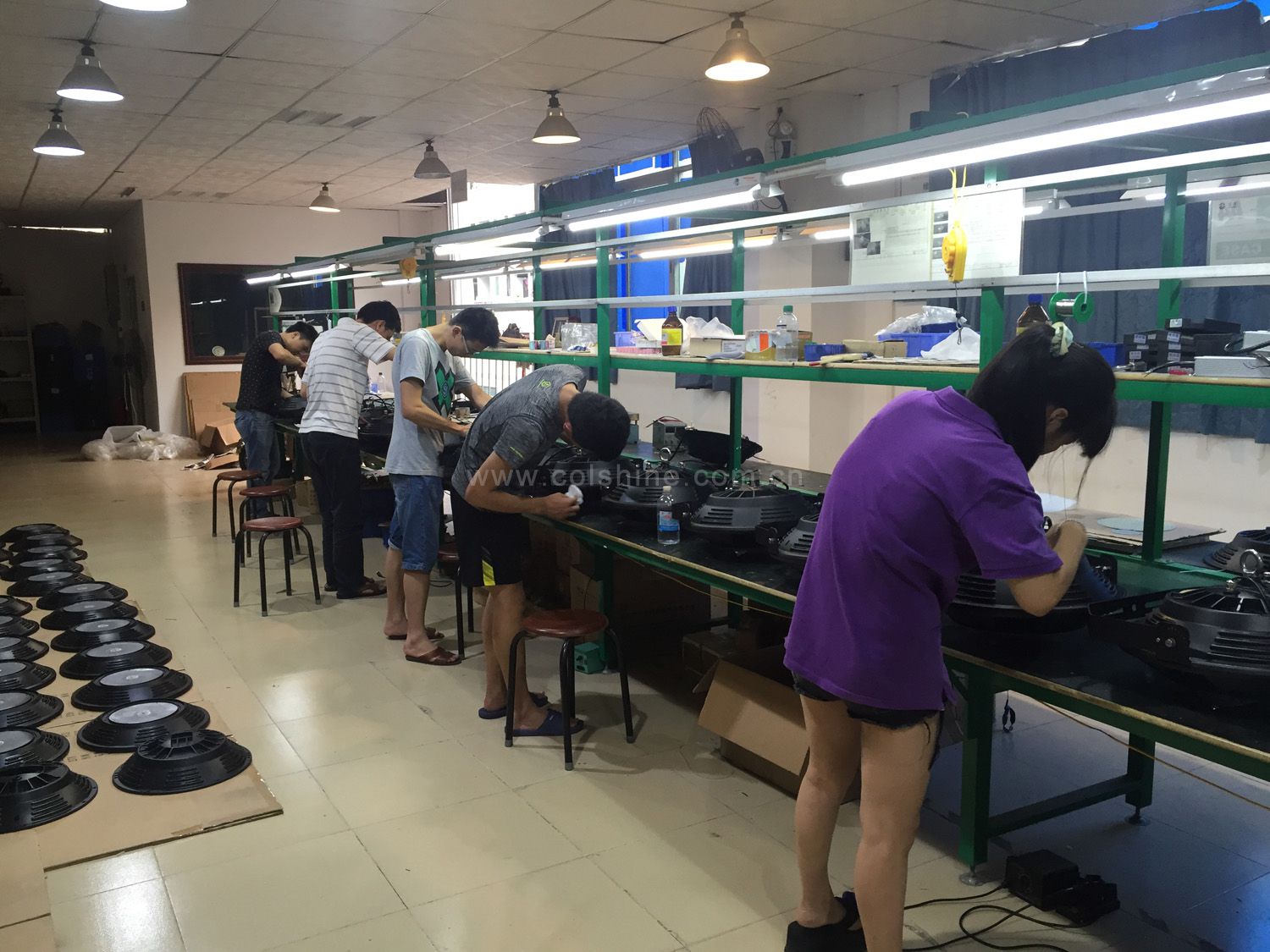

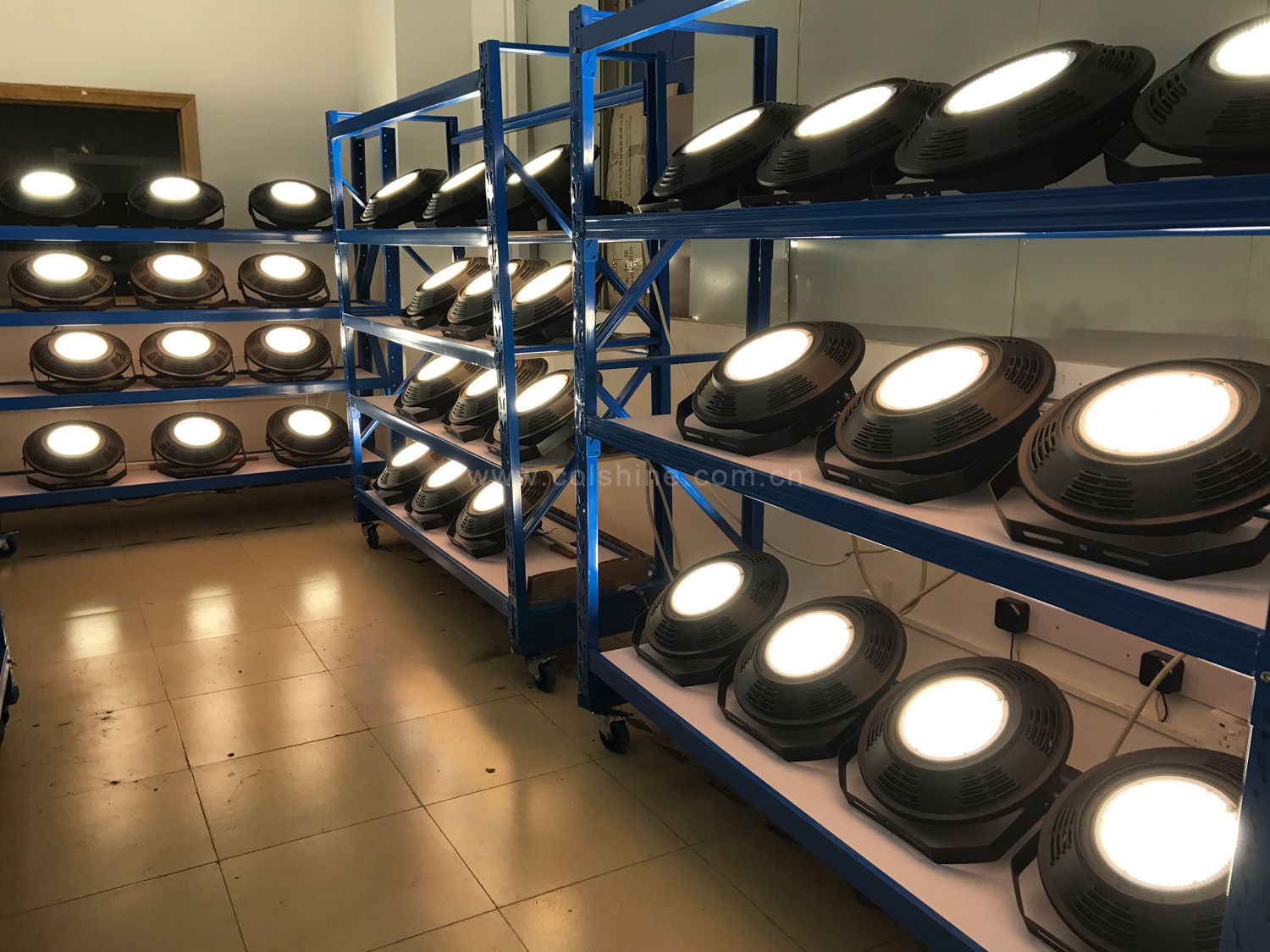

MASS PRODUCTION:
